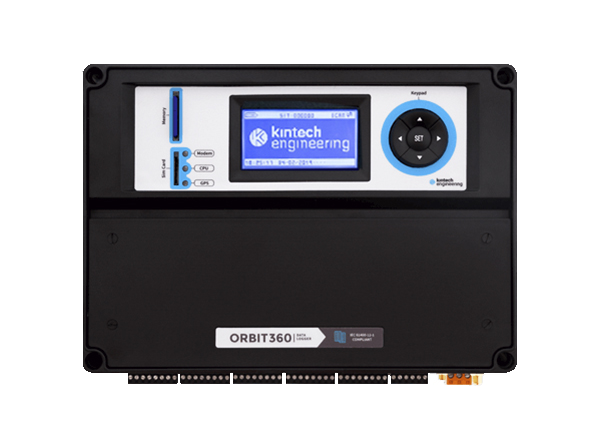

Kintech Orbit 360 Basic Plus Data Logger
• 10x frequency channels (pulse counters)
• 15x analog channels (voltage)
• 10x analog voltage OUT (5V | Switches)
• 6x analog current OUT
• 3x USB (2x USB-A host, 1x USB-B device)
• Sampling Rate: 1Hz
• Averaging period can be configured to 1,5 or 10 minutes
• GPS
• Compatible with BGAN and Iridium satellite communication
• 2G/3G/4G Modem
• Global Internet SIM card available
• Removable Memory SD/MMC (approx. 20 years)
• Internal Backup Memory (approx. 100 days)
• Data encrypted and password protected
• Operating Temperature: -40°C to 70°C
• External Power Supply: 5-30 VDC, Internal Backup Battery 17.000 mAh
• Material: Polycarbonated Plastic
• Weight: 1,8 kg
